Applications
- • Intelligent displays for surveillance and public safety
- • Digital signage
- • Cost sensitive applications
- • Industrial, medical and automotive applications
Description

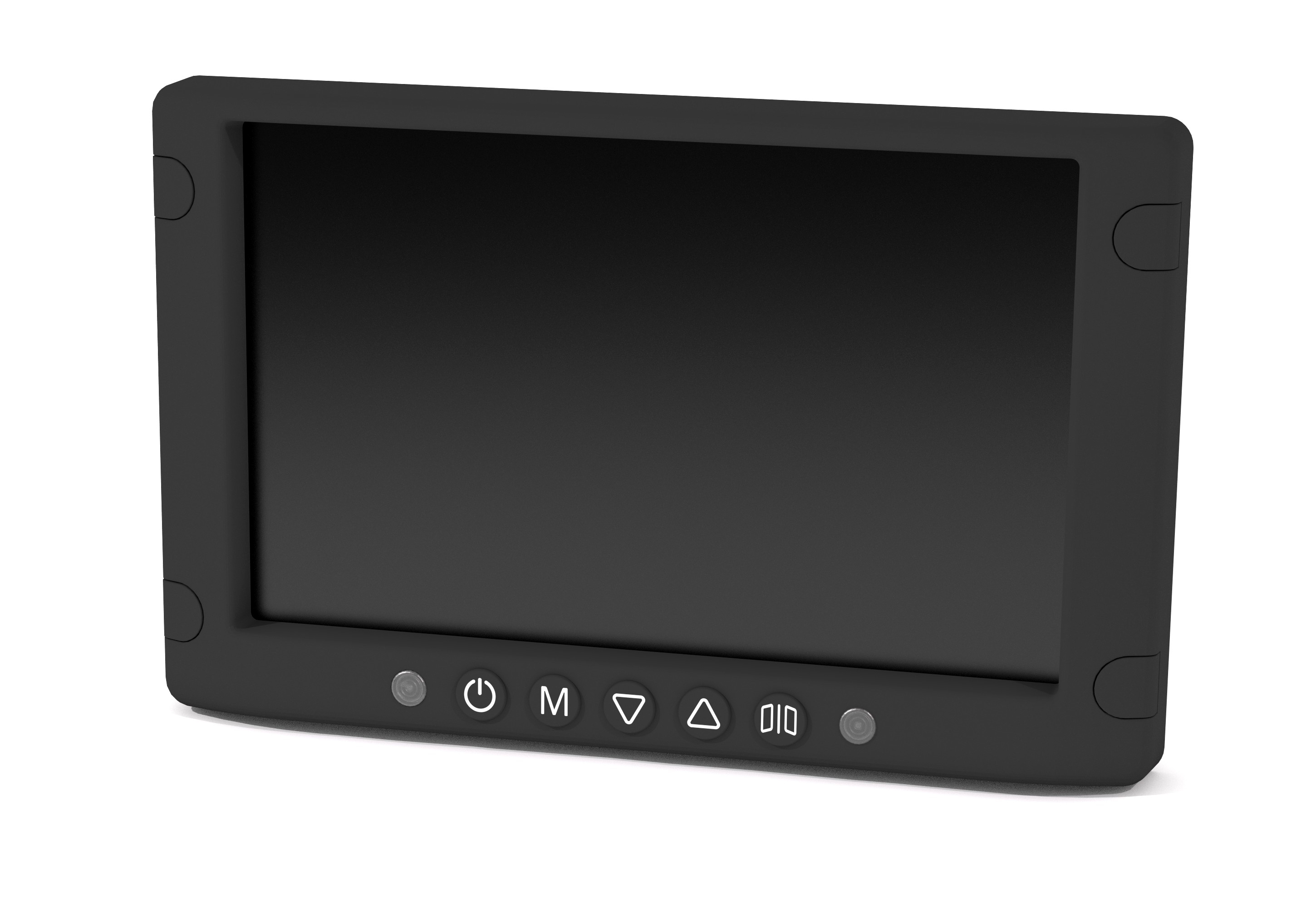

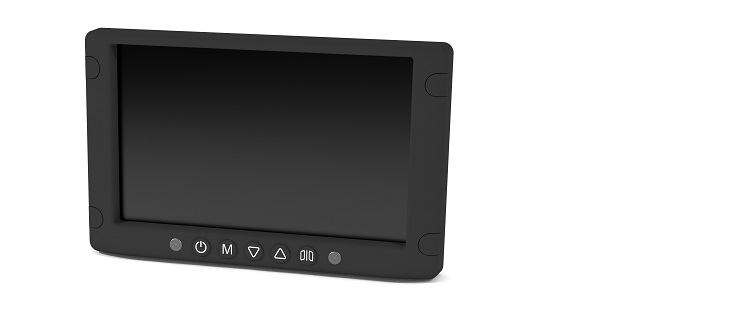

IP Monitor GIM-070 by Genexta represents the next generation of highly efficient industrial IP-streaming monitors.
With its size of only 7’’ it is not only rather slim but also a highly intelligent display system.
This sophisticated and small device can be used as a platform for designing even the most customized solutions.
Our IP Monitor GIM-070 is capable of processing video inputs in the formats Analog PAL/NTSC composite, Analog HD Y/C, Digital HDMI 1.4 and Digital 3G HD-SDI.
Its interfaces can be defined and configured according to your specific demands and individual concepts.
It is your perfect choice as it offers you an integrated graphical OSD, as well as scaling, quad split and zoom function.
Downloads
Product Features
-
Processor System
- • Cortex A8 processor, 1GHz
- • 3D GPU
- • 512MB DDR3 DRAM, 8GB eMMC flash
- • USB2.0 host/device/OTG
- • MicroSD card, Gigabit-Ethernet IEEE.802.3z
-
TFT Display
- • Size: 7“
- • Resolution: 1024x600px
- • Brightness: 450cd/m2
- • Capacitive Touch with glass cover
-
Power Supply
- • Operating Voltage: +9-36V
- • Power dissipation: approx. 5W
-
Environmental / Mechanical
- • Size: approx 180x100x30mm (depends on final design)
- • Operating Temp: -20°C to +85°C
- • RoHS compliant, CE
