Applications

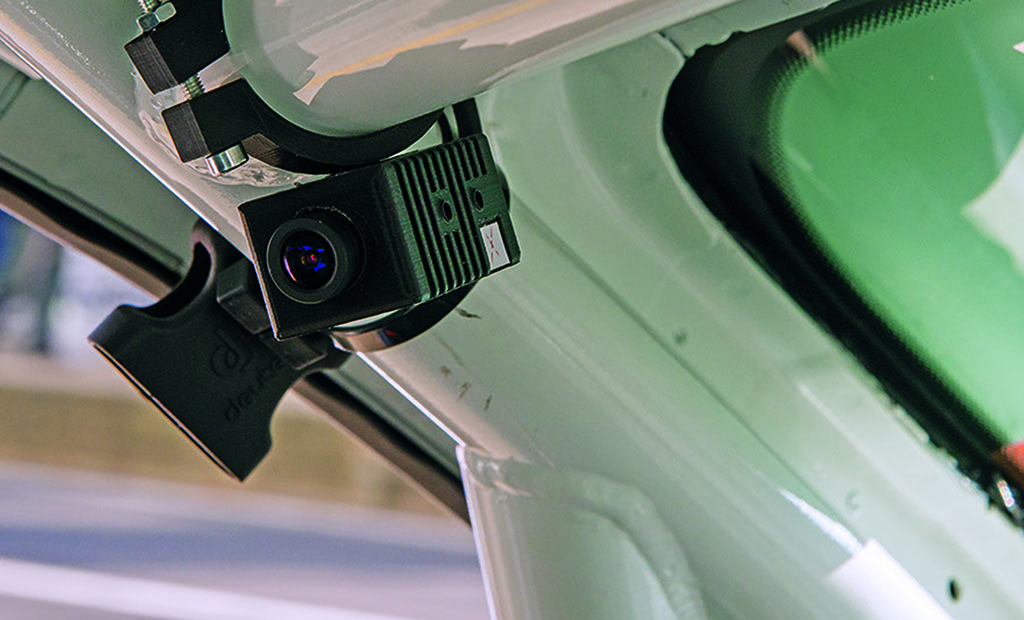

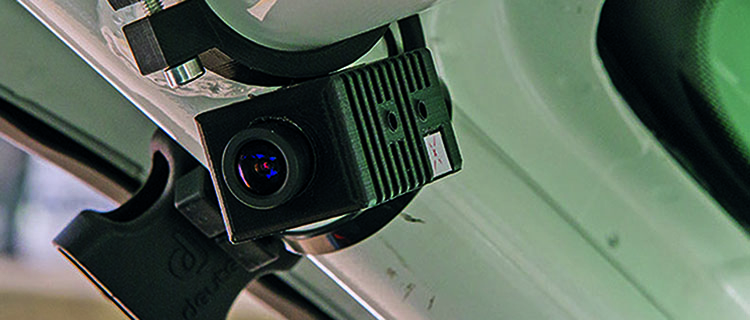

- • Indoor camera in public transportation

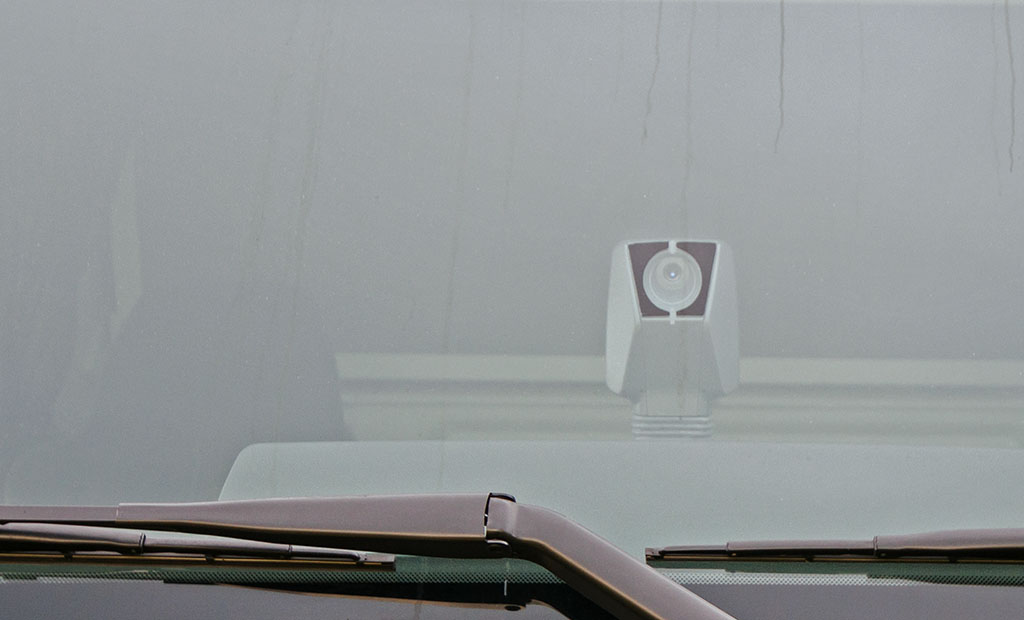

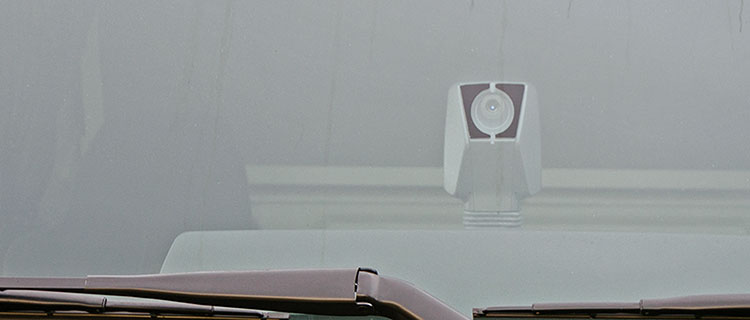

- • Rear camera on busses, camping cars
- • CCTV applications
Description

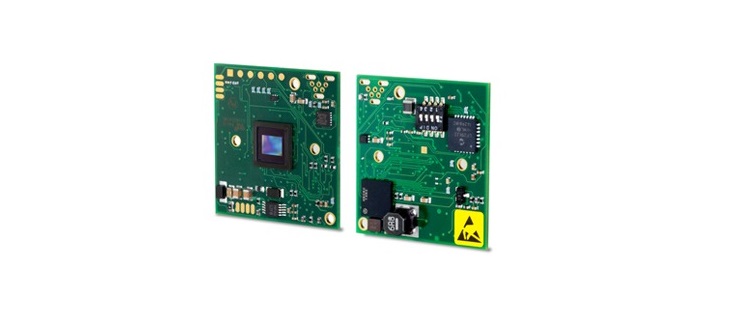

This is another camera solution by Genexta which offers you the capability for easy and flexible integration into several applications. It includes a 1/4’’ CMOS sensor and produces pictures with a high native resolution of 1,280 x 800 pixels. With its SNR of 41 dB, its high-dynamic-mode and a sensitivity of 4.0 V/lux*s it offers you technical values that are highly convincing. Concerning the system setup you can use the VIDEOCAM GxC-720 HDR for a simple setup via DIP-switches or an enhanced setup via USB-dongle. It produces analog composite video output as well as BT-601 and provides you with an output resolution in NTSC, PAL-B, PAL-D and PAL-G.
Downloads
Product Features
-
Functional Attributes
- • 1/4‘‘ CMOS image sensor, colour masked
- • Native resolution: 1280x800@60fps
- • SNR: 41dB, sensitivity: 4.0V/lux*sec
- • High-dynamic-mode (HDR)
- • Image processing subsystem with AGC, AEC, AWB, adaptive-local-tonemapping
- • Perspective image adjustment graphics overlay (controlled by steering)
- • Lens distortion correction
-
Interfaces
- • PAL-B/-D/-G or NTSC output
- • Integrated M12 lens with IR-cut filter
- • FOV(D): 175° / other options on request
-
Power Supply
- • Operating voltage: +9-36V DC
- • Power dissipation: approx. 1.0W
-
Environmental / Mechanical
- • Size: 25mm x 22mm x 28mm
- • Operating temp: -40°C to +85°C
- • Sealed and molded housing: IP69K
- • RoHS compliant, ECE-R10
