Applications

• • Frontview Camera Monitor
• • Rearview Camera Monitor

Description

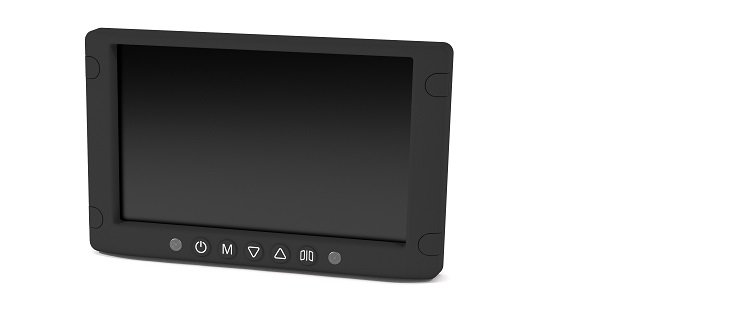

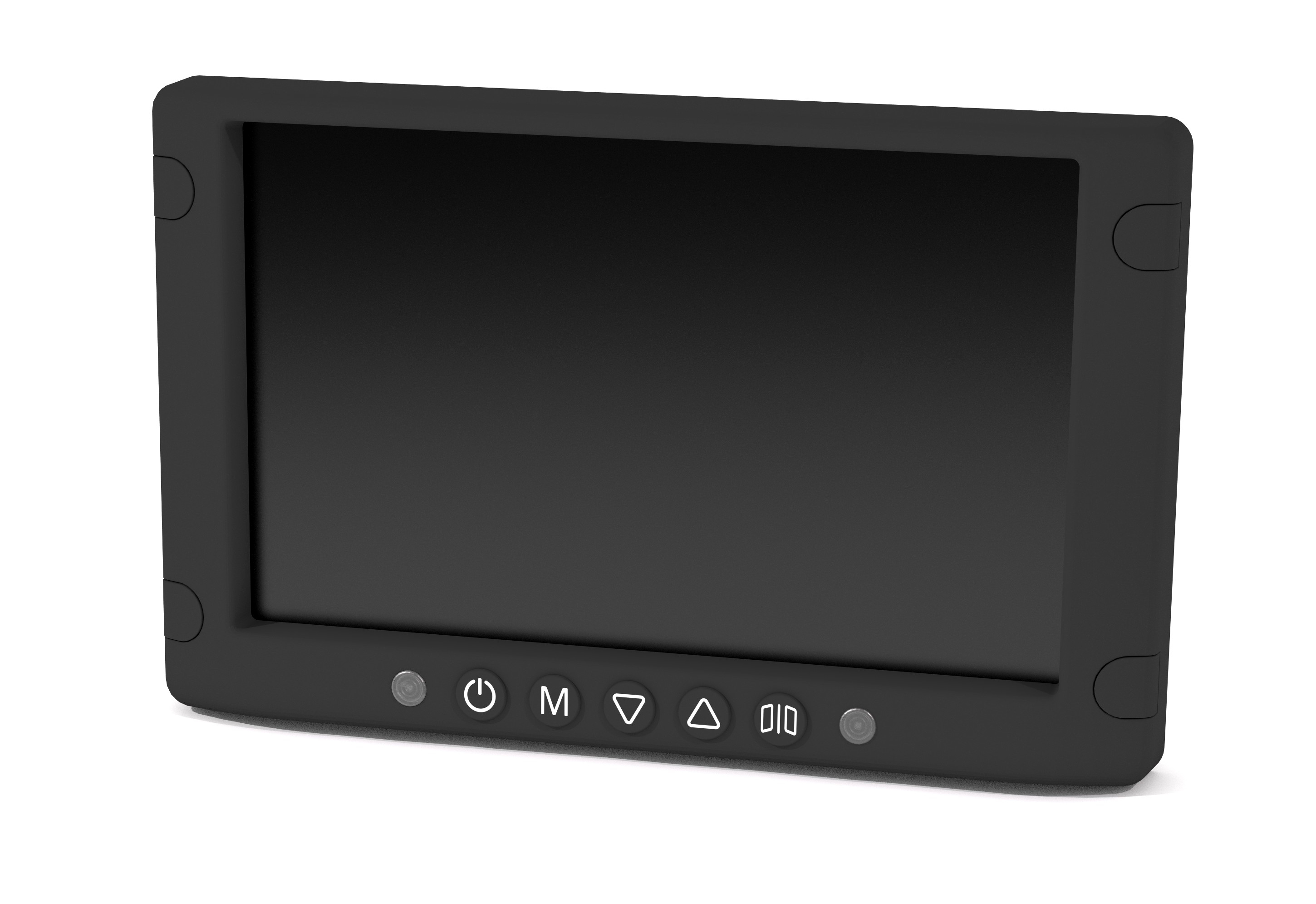

The GTM-070 is a High Quality, high resolution 7“ automotive monitor made in Germany. This small and high brightness video monitor is prepared for console assembly or mounting on top of the dashboard. It can display two input channels for connecting NTSC/PAL cameras or DVD players. Easy handling by OSD menu and state-of-the-art capacitive keys with separate On/Off and mirror functions combined with the new touch based remote camera control functionality ensures a new and extraordinary user experience.

Downloads

Datasheet (PDF)

Product Features

• • Latest generation TFT 16:9 wide screen digital panel with LED backlight
• • Size: 7“
• • Resolution: 800*480 pixel
• • High Brightness 400 cd/m2 (max.) with ambient control
• • OSD menu: Brightness, Contrast, Color, Auto On/Off

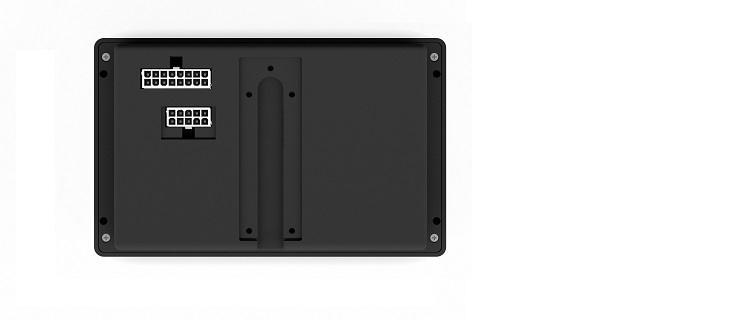

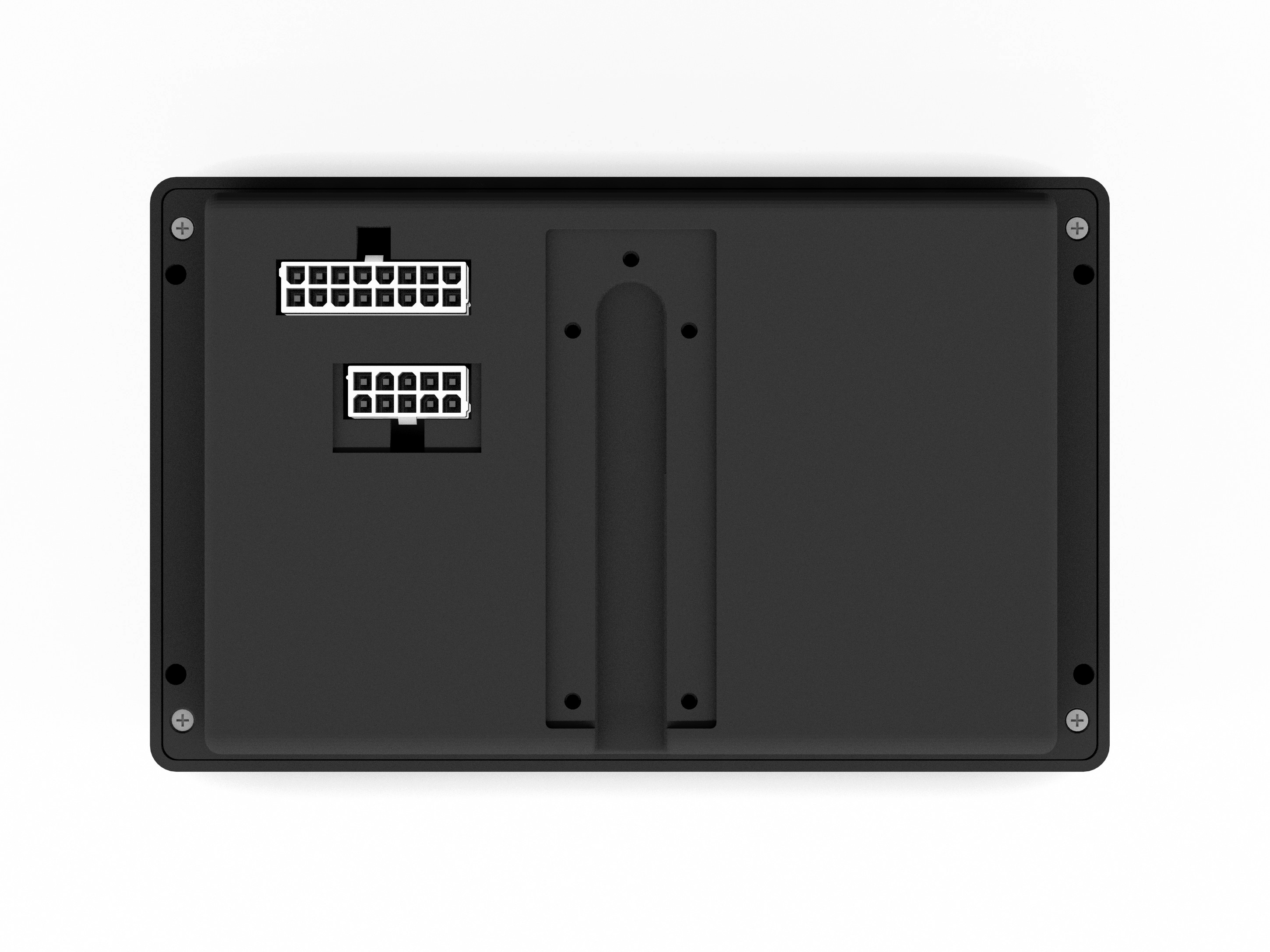

• • 2 x BNC video input, 2 x camera supply, 2 x channel select inputs
• • Mirror function
• • Supports PAL and NTSC
• • Capacitive keys

Optional
• • Resistive touch and remote camera control
• • Different Cables
• • Ext. mounting set

Power Supply
• • Operating Voltage: 9-36V, max. 6W

Environmental / Mechanical
• • Outside dimensions: 188 x 116 mm
• • Weight: 0.5 kg
• • Operating Temp: -20°C to +80°C
• • RoHS compliant, CE Automotive
